PostSubject: Homemade crawler   Tue 07 Apr 2009, 2:37 am

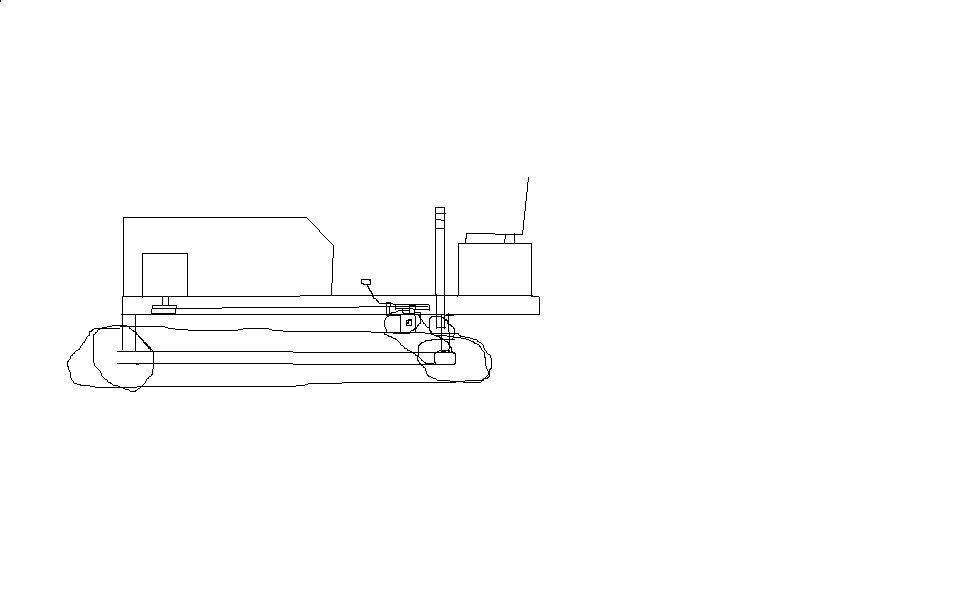

OK so I saw this pic and got to thinking that i would like to make myself a little crawler.

Heres the pic:
http://www.popengines.com/MyCrawler4.JPG

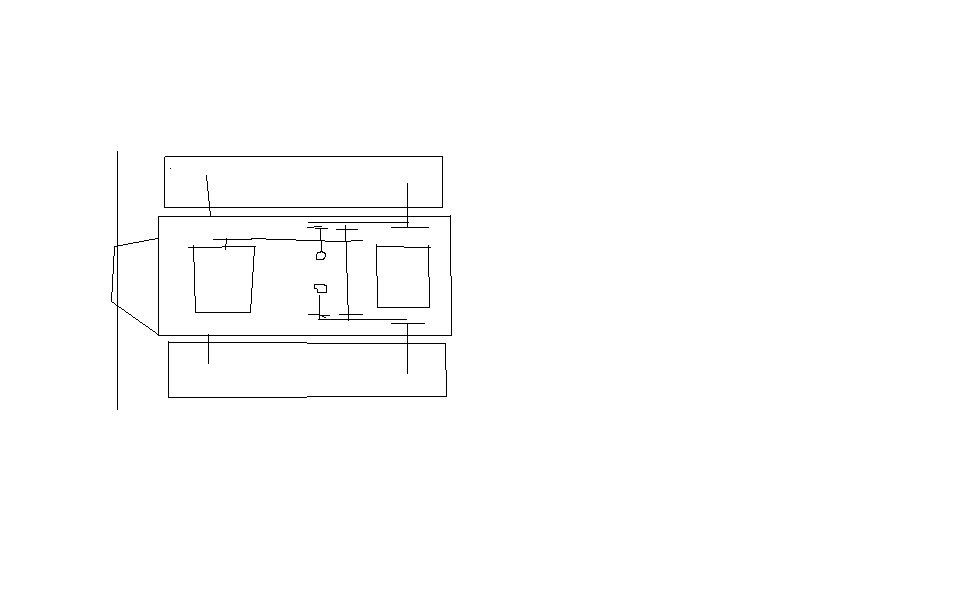

And here are the plans i took a few minutes to draw up. I still need to figure out reverse, but so far things seem good.
Try and figure it out, but if my drawing is to crappy ill explain it lol!

Back to top Go down
johnboggs21
Moderator


Posts: 1123
Join date: 2009-02-25
Age: 21
Location: michigan

PostSubject: Re: Homemade crawler   Mon 06 Apr 2009, 8:45 pm

nother drawing:

Back to top Go down
johnboggs21
Moderator


Posts: 1123
Join date: 2009-02-25
Age: 21
Location: michigan

PostSubject: Re: Homemade crawler   Mon 06 Apr 2009, 8:47 pm

nother pic of that first crawler i linked:
http://www.popengines.com/MyCrawler8.JPG
Back to top Go down
johnboggs21
Moderator


Posts: 1123
Join date: 2009-02-25
Age: 21
Location: michigan

PostSubject: Re: Homemade crawler   Mon 06 Apr 2009, 8:50 pm

ok found a whole mess of pics of that little crawler:
http://www.popengines.com/MyCrawler2.JPG
http://www.popengines.com/MyCrawler3.JPG
http://www.popengines.com/MyCrawler7.JPG
http://www.popengines.com/MyCrawler5.JPG
http://www.popengines.com/MyCrawler6.JPG
Back to top Go down
johnboggs21
Moderator


Posts: 1123
Join date: 2009-02-25
Age: 21
Location: michigan

PostSubject: Re: Homemade crawler   Mon 06 Apr 2009, 8:59 pm

whattya think of this reverse set up that buzz found for me?
http://www.americanartifacts.com/smma/advert/aw44i.jpg
Back to top Go down
Rollerman



Posts: 94
Join date: 2009-03-01
Location: Millersburg,IN

PostSubject: Re: Homemade crawler   Mon 06 Apr 2009, 11:16 pm

Thats a Struck crawler...pretty neat & expensive too.
I think some kind of hydrostatic trans would be the easiest way with a breaking system to stop one side or the other.
I think the Strucks used reverser discs....I know Lennox crawlers did.
Back to top Go down
Nathan Werneburg
Post Addict


Posts: 441
Join date: 2009-02-25
Age: 34
Location: Ida Grove IA

PostSubject: Re: Homemade crawler   Mon 06 Apr 2009, 11:25 pm

use the drive system out of a blue dixon lol just what u need for this application
Back to top Go down
walterg



Posts: 4
Join date: 2009-03-14

PostSubject: Re: Homemade crawler   Tue 07 Apr 2009, 12:17 am

John sent you a pm.

Walter
Back to top Go down
Motomow
Admin


Posts: 1516
Join date: 2009-02-24
Location: Indiana

PostSubject: Re: Homemade crawler   Tue 07 Apr 2009, 12:18 am

umm johnny on the pic where does that guy put his feet? or does he just lay down on it?? LOL
Back to top Go down
http://www.motomow.com
johnboggs21
Moderator


Posts: 1123
Join date: 2009-02-25
Age: 21
Location: michigan

PostSubject: Re: Homemade crawler   Tue 07 Apr 2009, 10:28 am

your feet go on the fenders like.... know what i mean? did you watch the video?
Back to top Go down
Motomow
Admin


Posts: 1516
Join date: 2009-02-24
Location: Indiana

PostSubject: Re: Homemade crawler   Tue 07 Apr 2009, 1:18 pm

i just looked at the picture i'll check out the video.
Back to top Go down
http://www.motomow.com
johnboggs21
Moderator


Posts: 1123
Join date: 2009-02-25
Age: 21
Location: michigan

PostSubject: Re: Homemade crawler   Tue 07 Apr 2009, 2:10 pm

Hmmm guess it would help if i actually posted the video lol!

Back to top Go down
Motomow
Admin


Posts: 1516
Join date: 2009-02-24
Location: Indiana

PostSubject: Re: Homemade crawler   Tue 07 Apr 2009, 7:21 pm

That is really cool johnny,amazing what people can come up with.
Back to top Go down
http://www.motomow.com
johnboggs21
Moderator


Posts: 1123
Join date: 2009-02-25
Age: 21
Location: michigan

PostSubject: Re: Homemade crawler   Wed 08 Apr 2009, 9:07 pm

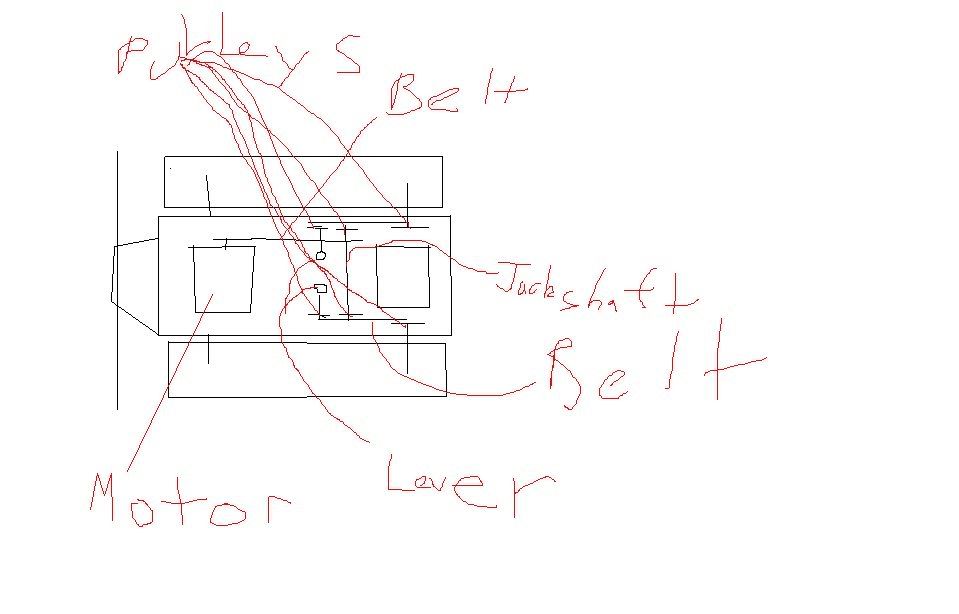

Alright first off id like to thank walterg for his helpful email. Secondly I revised my plans some. Now im gonna build it off a murray. Ill use a 4 or 5 horse push mower engine for power and a peerless transaxle out of a murray with a couple pulleys on the axle shafts. This way i can use the different gears in the tranny to control my speed and have reverse. The 2 levers are belt tensioners which will work as my clutches. Im not sure what im going to do for tracks right now, but ill cross that bridge when i get to it.

Back to top Go down
johnboggs21
Moderator


Posts: 1123
Join date: 2009-02-25
Age: 21
Location: michigan

PostSubject: Re: Homemade crawler   Thu 09 Apr 2009, 10:01 pm

Well i completed the teardown today. Gotta try to find some pulleys and sprockets tomorrow to use for my brake and drive systems. The general consensus so far has been that 4 Hp is not enough, so i managed to score a free 10 horse and all ill i have to do is pay shipping. Ive been provided with a couple different ideas for tracks, so i at least have some idea of what im going to do for that. Got pics soon as i pick up a USB cable.

John
